    Riot Metal 304SS IK07 Industrial Keyboard With Touchpad

    Ask Lasest Price
    Brand Name : guangzhi
    Model Number : GZ-C003013-AZ01
    Certification : CE FCC RoHS
    Price : To be quoted
    Payment Terms : T/T, Paypal
    Supply Ability : 100000pcs
    Delivery Time : 5-20 work days
    • Product Details
    • Company Profile

    Riot Metal 304SS IK07 Industrial Keyboard With Touchpad

    Riot Metal 304SS IK07 Industrial Keyboard With Touchpad


    Metal keyboard product model: GZ-C003023-AZ01
    Industrial keyboard product size: 392*110MM

    Description of PC industrial keyboard:

    Vandal-proof stainless steel keyboard, 65+2 keys, compact layout of keys, 2.0mm long key stroke, and side mounting nails on the front stainless steel panel. It adopts all-stainless steel panel and aluminum alloy bottom plate material design, precise and accurate mold matching, beautiful and generous surface treatment.

    Features of metal keyboard:

    • The design of IP65 waterproof and dustproof protection level, after installation, the keyboard can achieve the effect of waterproof and dustproof on the surface, and prevent liquid or dust from penetrating into the keyboard.

    • The user-friendly layout of the key surface, the key surface is laser engraved and then etched with moderate depth patterns and characters for better operation, and long-term use will not cause the characters to fall off or be worn.

    • Customize any key surface in multiple languages to adapt to different countries and various customized styles.

    Performance of stainless steel industrial keyboard:

    1. Key stroke: 2.0mm

    2. Key life: more than 5 million operations per key.

    3. Pressing force: 1.2N+/-0.1N (contact force)

    4. Touchpad material: 1.3mm thick PCB with polyester fil

    5. Working voltage: DC +5V+/-5%

    6. Working current: 10mA

    7. Electromagnetic radiation: EN50081-1

    8. Electromagnetic immunity: EN50082-1

    9. Electromagnetic compatibility standards: 89/336/EEC EN55022: 1988+A1: 2003 EN55024: 1988+A1: 2001+A2: 2003

    10. Expected service life: >5 years

    11. Key switch technology: conductive carbon particles/gold-plated PCB

    12. Interface technology: PS2, USB optional

    Data of industrial keyboard touch screen:
    1. Touchpad cover: Composite
    2. More than Lifetime 10 million strokes
    3. Mutual Capacitance sensing
    4. X/Y position sensing resolution: 40 counts/mm
    5. X/Y position reporting: Relative
    6. Output (self-detectable depending on cable): PS2 or USB
    7. Tracking speed: Maximum 1,016 m/sec
    8. Power supply voltage: 5 VDC ±0.25V
    9. Current rating (active mode): 17 mA

    Environmental adaptability of industrial stainless steel keyboard:

    Working temperature

    0℃to+60℃

    Storage temperature

    -25℃to+70℃

    Relative humidity

    30-90% (no condensation)

    Atmospheric pressure

    60-106Kpa

    Salt spray test

    96 hours IEC60512-6

    40℃ high humidity test

    21 days, IEC60512-6

    High dryness test at 85℃

    10 days, IEC60512-6

    Key life

    5 million operations/key

    Mean time to failure

    > 50000 hours

    Average repair time

    <30 minutes

    CAD drawings of metal keyboard products:

    Riot Metal 304SS IK07 Industrial Keyboard With Touchpad

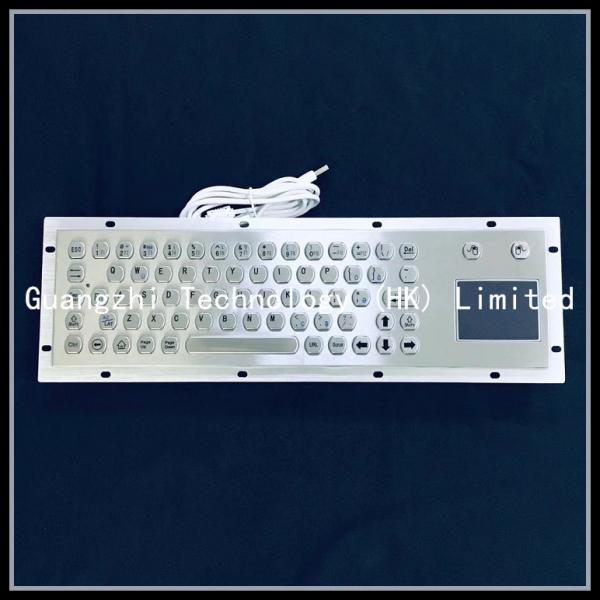

    Picture of the front and back of the industrial waterproof keyboard:

    Riot Metal 304SS IK07 Industrial Keyboard With Touchpad

    Physical image of riot keyboard packaging:

    Riot Metal 304SS IK07 Industrial Keyboard With Touchpad

    Riot Metal 304SS IK07 Industrial Keyboard With Touchpad

    Riot Metal 304SS IK07 Industrial Keyboard With Touchpad

    Why choose us:

    * Quick response, 24*7 service.

    * Small orders are welcome.

    * Delivery time: 2-20 working days.

    * Since 2000, with more than 20 years of research and development and 15 years of manufacturing experience.

    * Extensive experience in OEM and ODM orders can help you customize your own professional products.
