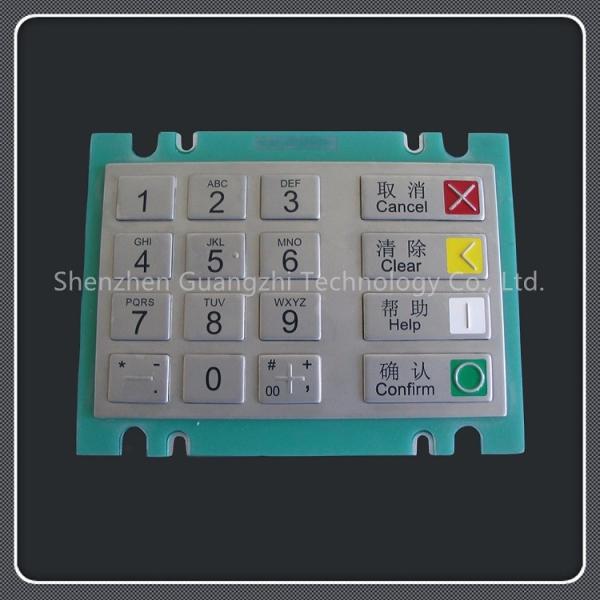

Bank Atm Pin Keypad Long Service Life, Atm Pin Keyboard With Strong Bearing

    Buy cheap Bank Atm Pin Keypad Long Service Life, Atm Pin Keyboard With Strong Bearing from wholesalers

    Buy cheap Bank Atm Pin Keypad Long Service Life, Atm Pin Keyboard With Strong Bearing from wholesalers
    • Buy cheap Bank Atm Pin Keypad Long Service Life, Atm Pin Keyboard With Strong Bearing from wholesalers

    Bank Atm Pin Keypad Long Service Life, Atm Pin Keyboard With Strong Bearing

    Ask Lasest Price
    Brand Name : guangzhi
    Model Number : GZ-B006016G
    Certification : CE、FCC、RoHS、PCI、CB、 PCI 4.x 、PTS2.x、 GUOMI
    Price : To be quoted
    Payment Terms : T/T
    Supply Ability : 10000pcs
    Delivery Time : 1-20 work days
    • Product Details
    • Company Profile

    Bank Atm Pin Keypad Long Service Life, Atm Pin Keyboard With Strong Bearing

    Bank GSM wincor nixdorf NCR hitachi GRG ATM kiosk , Stainless steel encryption keyboard

    Product name:ATM Pin Keypad

    Model: GZ-B006016G

    Size:160*102.3mm

    Mechanical Performance

    Panel Features

    Imported stamping stainless steel material, oil-free, does not absorb sweat

    Keys

    Stainless steel material

    Key lifespan

    >3 Million times long life use

    Key Pressure

    2~3N strong bearing

    Key Travel

    0.45mm

    Key Fonts

    etched and durable ink, solid

    Activation Dynamics

    50g

    Protection Capacity

    Sensitive data securely be kept over 5 years when power-off

    Operating Environment

    Interfaces Type

    RS232 port, baud rate: 9600, no odd-even; standard USB2.0 port

    Power Supply

    DC5V+10%

    Power Consumption

    <0.5W (dynamic), <0.2W(static)

    Reliability

    MTBF: >30,000H; MTTR: <30 min

    Operating Temperature

    -25℃~+65℃

    Storage Temperature

    -35℃~+75℃

    Operating Humidity

    ≤95% r.h (non-condensing)

    Supported Algorithm

    * DES user data ECB/CBC encryption/decryption

    * 3DES user data ECB/CBC encryption/decryption

    * DES MAC calculation

    * 3DES MAC calculation

    * DES PIN encryption

    * 3DES PIN encryption

    * Multiple PIN Block formats: ANSI, ISO0, ISO1, ECI2, ISO3, IBM3624, DIEBOLD, DIEBOLDCO Connection

    * RS232 port: complying with the RJ45 of EIA-RS232-D standard. The baud rate can be configured to 57600 baud.
