    Industrial Kiosk Keypad , Stainless Steel Automatic Gate Keypad Mirror Polished

    Ask Lasest Price
    Brand Name : guangzhi
    Model Number : GZ-Z010100-001
    Certification : CE, FCC, CE and FCC certified, RoHS
    Price : To be quoted
    Payment Terms : T/T, Paypal
    Supply Ability : 100000pcs
    Delivery Time : 1-20 work days
    • Product Details
    • Company Profile

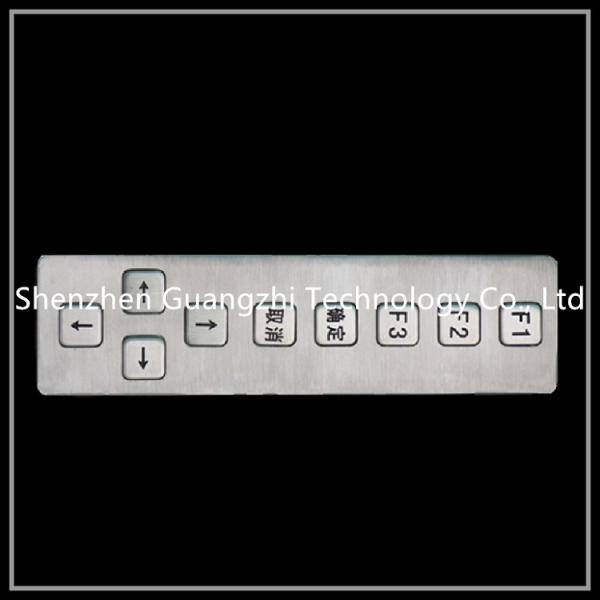

    Industrial Kiosk Keypad , Stainless Steel Automatic Gate Keypad Mirror Polished

    Special industrial stainless steel function bar side key metal keyboard for access control

    Product name: Industrial Numeric Keypad

    Model: GZ-Z010100-001

    Size: 168*45mm

    USER OPTIONS

    1. Surface treatment of frame and keys: satin-finished or mirror polish.
    2. Connectors:USB, PS / 2, XH socket,PIN,RS232,DB9.

    3. Labels on the buttons can be customized by etching.

    APPLICATION

    self-service library

    self-service kiosk

    CNC machine

    household applications

    oiling machine

    charge spot

    industrial telephone

    ATM

    access control

    ticket machine

    vending machine

    medical facility

    security system

    fingerprint attendance machine

    PARAMETERS

    Model number

    B733

    Defend Grade

    IP65

    Keys

    9 keys

    Vandal resistant

    IK09

    Electrical lifetime

    > 5 years

    Contact resistance

    200 ohm (max)

    Current Rating

    appr. 30mA

    Power supply

    + 5V +/- 5%

    G.W.

    0.25kg approx

    Dimensions

    168mm *45mm*5.5mm

    Frame/keys materials

    Stainless steel

    life span

    ≥2 million

    Elasticity of key

    2.5-3N

    Key travel

    ≤100Ω

    Atmospheric pressure

    60-106Kpa

    Operate Temperature

    -40℃~+85℃

    Travel distance

    0.45mm
