Flush Mount Backlit Numeric Keyboard , Metal Atm Machine Number Pad

    Buy cheap Flush Mount Backlit Numeric Keyboard , Metal Atm Machine Number Pad from wholesalers

    Buy cheap Flush Mount Backlit Numeric Keyboard , Metal Atm Machine Number Pad from wholesalers
    • Buy cheap Flush Mount Backlit Numeric Keyboard , Metal Atm Machine Number Pad from wholesalers

    Flush Mount Backlit Numeric Keyboard , Metal Atm Machine Number Pad

    Ask Lasest Price
    Brand Name : guangzhi
    Model Number : GZ-Z010233
    Certification : CE, FCC, CE and FCC certified, RoHS
    Price : To be quoted
    Payment Terms : T/T, Paypal
    Supply Ability : 100000pcs
    Delivery Time : 10-20 work days
    • Product Details
    • Company Profile

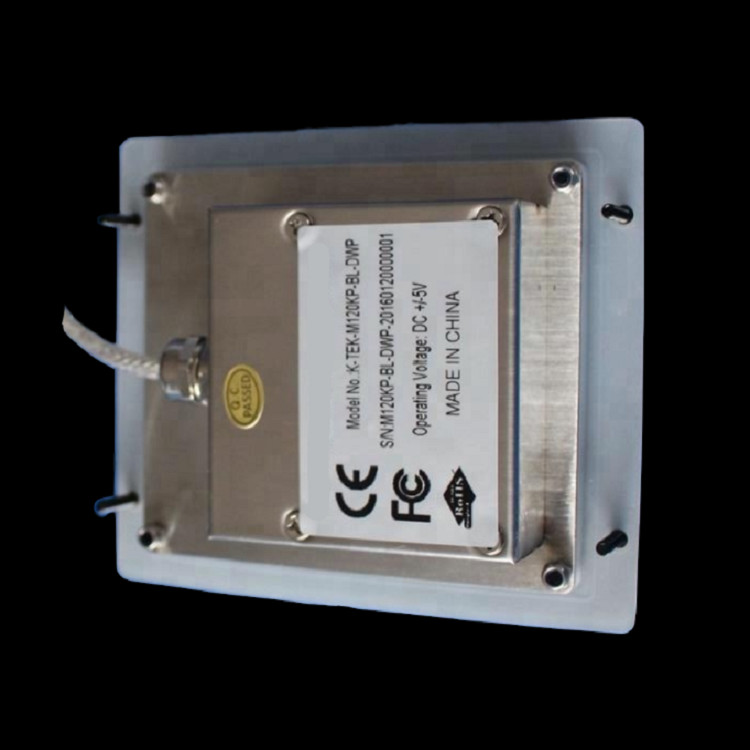

    Flush Mount Backlit Numeric Keyboard , Metal Atm Machine Number Pad

    New design of metal stainless steel keyboard 4x4 16 button keyboard metal digital ATM keypad

    Product Name: industrial metal keyboard

    Product specification: 120*102mm

    FEATURES
    1. 16 Keys vandal-proof IP65 stainless steel matrix keypad.10 number keys, 6 function keys.
    2. Keys are good touch feeling and accurate data input without any noise.
    3. Easy to install and maintenance; flush mount.
    4. Our panel and buttons are made of stainless steel 304, which is highly rugged, vandal-proof, against corrosion, weather-proof.
    5. Fonts and pattern of key surface can be customized.
    6. The keypad is waterproof, anti-drilling and removal-proof.
    7. The keypad uses double-sided PCB and mental dome; Good contact.
    8. The labels on the buttons are made by etching, and fill in high strength paint.

    USER OPTIONS
    1. Surface treatment of frame and keys: satin-finished or mirror polish.
    2. Connectors:USB, PS / 2, XH socket,PIN,RS232,DB9.

    3. Labels on the buttons can be customized by etching.

    APPLICATION

    self-service libraryself-service kioskCNC machine
    household applicationsoiling machinecharge spot
    industrial telephoneATMaccess control
    ticket machinevending machinemedical facility
    security systemfingerprint attendance machine

    PARAMETERS
    Model numberGZ-Z010233
    Defend GradeIP65
    Keys16 keys
    Vandal resistantIK09
    Electrical lifetime> 5 years
    Contact resistance200 ohm (max)
    Current Ratingappr. 30mA
    Power supply+ 5V +/- 5%
    G.W.0.20kg approx
    Dimensions100mm * 100 mm*5.5mm
    Frame/keys materialsStainless steel
    life span≥2 million
    Elasticity of key2.5-3N
    Key travel≤100Ω
    Atmospheric pressure60-106Kpa
    Operate Temperature-40℃~+85℃
    Travel distance0.45mm
