Stainless Steel 71 Key Keyboard , Vandal Proof Keypad With 38mm 25mm Tracker Ball

    Buy cheap Stainless Steel 71 Key Keyboard , Vandal Proof Keypad With 38mm 25mm Tracker Ball from wholesalers

    Buy cheap Stainless Steel 71 Key Keyboard , Vandal Proof Keypad With 38mm 25mm Tracker Ball from wholesalers
    • Buy cheap Stainless Steel 71 Key Keyboard , Vandal Proof Keypad With 38mm 25mm Tracker Ball from wholesalers

    Stainless Steel 71 Key Keyboard , Vandal Proof Keypad With 38mm 25mm Tracker Ball

    Ask Lasest Price
    Brand Name : guangzhi
    Model Number : GZ-C002013
    Certification : FCC, CE, ROHS, IP65, ISO9001
    Price : To be quoted
    Payment Terms : T/T, Paypal
    Supply Ability : 100000pcs
    Delivery Time : 10-20 work days
    • Product Details
    • Company Profile

    Stainless Steel 71 Key Keyboard , Vandal Proof Keypad With 38mm 25mm Tracker Ball

    71 keys vandal proof stainless steel keyboard with integrated 38mm or 25mm stainless steel laser tracker ball

    Front panel size:

    392*110mm

    KEYS:717

    71 KEYS

    Mouse ball size:

    25 or 38 mm

    Line length:

    2m

    weight:

    1.5KG

    Product name:metal PC keyboard

    Model: GZ-C002013

    Size:392*110mm

    Product description: Anti-riot stainless steel keyboard, 71 keys, Compact layout of buttons, 2.0mm long button stroke, Full stainless steel panel and button design, Precise and accurate mold matching, Beautiful surface treatment. Mainly used in various unsupervised Or information terminals in semi-regulated places, Such as Internet terminals, Universities, Shopping malls, Hotels, Banks, Airports, Stations and other public places kiosks, Ticket vending machines, Gas stations, Bank tellers (Automatic deposit / Withdrawal machines), Public Telephone, Etc.

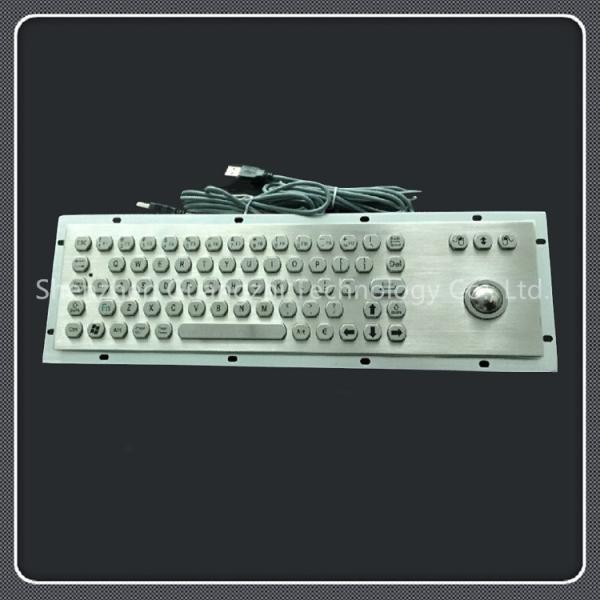

    Front face effect of the product:

    Stainless Steel 71 Key Keyboard , Vandal Proof Keypad With 38mm 25mm Tracker Ball

    Back face effect of the product:

    Mechanical parameters:

    1. Button: 68 buttons, imported printed brushed SUS304 stainless steel.

    2. Button design: square convex button, or square flat button, laser engraving and then etching patterns and characters, and filling in high quality and durable environmentally friendly imported ink

    3. Button size: ordinary buttons: 14mm * 14mm, 14 * 28mm, 14 * 90mm

    4. Button stroke: 2.0mm

    5. Key life: operate more than 5 million times per key.

    6. Button strength: 1.2N +/- 0.1N (contact force)

    7. Mutual capacitance sensing:

    X/Y axis position detection resolution: 40counts/mm

    Trackball resolution: X>200dpi; Y>190dpi (optional mechanical or photo sphere)

    x/y position report: relative

    Sensing range: 65*49mm

    Touch tracking speed: >1.016 m / sec

    Power supply voltage: 5V ± 0.25V

    Rated current: 17 mA

    8. Rear panel: 3.0mm thick brushed aluminum plate

    9. Front panel: imported printed brushed SUS304 stainless steel, 1.5mm thick

    10. Weight: 1.5kg

    Electrical parameters:

    1. Working voltage: DC +5V +/- 5%

    2. Working current: 10mA

    3. Electromagnetic radiation: EN50081-1

    4. Electromagnetic immunity: EN50082-1

    5. Electromagnetic compatibility standards: 89/336/EEC EN55022:1988+A1:2003 EN55024:1988+A1:2001+A2:2003

    6. Expected service life: >5 years

    7. Button switching technology: conductive carbon particles / gold-plated PCB

    8. Interface technology: PS2, USB optional

    9. Operating System: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac osx

    Environmental adaptability:

    1. Working temperature: 0°Cto+60°C

    2. Storage temperature: -25°Cto+70°C

    3. Relative humidity: 30-90% (no condensation)

    4. Atmospheric pressure: 60-106Kpa

    5. Salt spray test: 96 hours, IEC60512-6

    6.40 °C high humidity test: 21 days, IEC60512-6

    7. 85 ° C high drying test: 10 days, IEC60512-6

    reliability:

    1. Dustproof and waterproof: IP65 (surface)

    2. Riot rating: IK09

    3. Key life 2 million operations / per key

    4. Average failure time > 50,000 hours

    5. Average repair time <30 minutes

    Special button description:

    This keyboard is used in the same way as a normal PC keyboard. The FN function key can be used in combination with the F1-F12 key. Only htp:// http:// , ftp. www. , @ , .com The four buttons are used when they are online, so they need to be used in English.

    The specific use method is as follows: switch the input method to the English state EN, press htp:// http:// , ftp. www. , @ , .com to get the corresponding key value. After use, it can be washed with water, disinfectant, alcohol or other cleaning solution.
