Parking System 40 Key Keyboard Stainless Steel Material Weather Resistant

    Buy cheap Parking System 40 Key Keyboard Stainless Steel Material Weather Resistant from wholesalers

    Buy cheap Parking System 40 Key Keyboard Stainless Steel Material Weather Resistant from wholesalers
    • Buy cheap Parking System 40 Key Keyboard Stainless Steel Material Weather Resistant from wholesalers

    Parking System 40 Key Keyboard Stainless Steel Material Weather Resistant

    Ask Lasest Price
    Brand Name : guangzhi
    Model Number : GZ-Z010130
    Certification : CE、FCC、RoHS
    Price : To be quoted
    Payment Terms : T/T, Paypal
    Supply Ability : 100000pcs
    Delivery Time : 10-20 work days
    • Product Details
    • Company Profile

    Parking System 40 Key Keyboard Stainless Steel Material Weather Resistant

    40 key waterproof stainless steel parking system metal number keyboard

    Product Name: Metal Numeric Keypad

    Model: GZ-Z010130

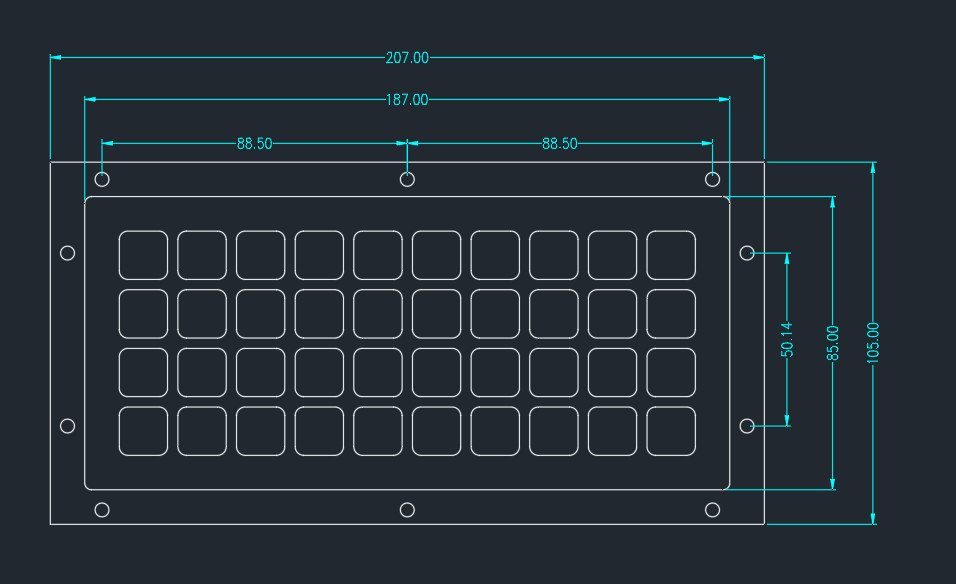

    Product specification:85*187mm


    APPLICATION

    self-service library

    self-service kiosk

    CNC machine

    household applications

    oiling machine

    charge spot

    industrial telephone

    ATM

    access control

    ticket machine

    vending machine

    medical facility

    security system

    fingerprint attendance machine

    PARAMETERS

    Model number

    B734

    Defend Grade

    IP65

    Keys

    40 keys

    Vandal resistant

    IK09

    Electrical lifetime

    > 5 years

    Contact resistance

    200 ohm (max)

    Current Rating

    appr. 30mA

    Power supply

    + 5V +/- 5%

    G.W.

    0.40kg approx

    Dimensions

    140mm *96mm*5.5mm

    Frame/keys materials

    Stainless steel

    life span

    ≥2 million

    Elasticity of key

    2.5-3N

    Key travel

    ≤100Ω

    Atmospheric pressure

    60-106Kpa

    Operate Temperature

    -40℃~+85℃

    Travel distance

    0.45mm

    FEATURES

    1. 40 Keys vandal-proof IP65 stainless steel matrix keypad. 10 number keys, 14 function keys.

    2. Keys are good touch feeling and accurate data input without any noise.
    3. Easy to install and maintenance; flush mount.
    4. Our panel and buttons are made of stainless steel 304, which is highly rugged, vandal-proof, against corrosion, weather-proof.
    5. Fonts and pattern of key surface can be customized.
    6. The keypad is waterproof, anti-drilling and removal-proof.
    7. The keypad uses double-sided PCB and mental dome; Good contact.

    8 . Suitable for the device which needs to select ↑↓←→.

    9. The labels on the buttons are made by etching, and fill in high strength paint.

    USER OPTIONS

    1. Surface treatment of frame and keys: satin-finished or mirror polish.
    2. Connectors:USB, PS / 2, XH socket,PIN,RS232,DB9.

    3. Labels on the buttons can be customized by etching.
