12 key self-service stainless steel backlit metal keyboard, USB interface, replaceable font

Product Name:Backlight metal keypad

Product P/N:GZ-B017010

Product dimension:100*94mm

Applications:

Mainly used in various unsupervised or semi-regulated information terminals, such as Internet terminals, universities, shopping malls, hotels, banks, airports, stations and other public places kiosks, ticket vending machines, gas stations, bank tellers ( Automatic deposit/detail machine), public telephone, etc.

main feature:

1. LED font light, environmental protection, energy saving, long life of more than 30,000 hours, light is dark or more convenient to use at night.

2. Stainless steel panels and buttons prevent deliberate damage, especially in harsh environments.

3. IP65 waterproof and dustproof protection level design, the keyboard after installation can achieve the effect of surface waterproof and dustproof.

4. The keyboard adopts a long-stroke convex button with good tactile visual experience, which can be used more clearly in dimly lit environments, and realizes user-free and fast and accurate data input without noise.

5. The metal keyboard surface buttons are very good for preventing smashing, and are not easy to bend and detach, thus preventing the keys from falling off and being damaged.

6. Customize any key surface in multiple languages to suit different countries and various custom styles.

7. Easy to install, provide USB interface to connect to the host for keyboard operation.

Mechanical parameters:

1. Button: 12 buttons, imported printed brushed SUS304 stainless steel;

2. Button design: square convex button, laser engraved and etched out hollow patterns and characters;

3. The size of the button: ordinary button: 14.7mm * 21.7mm;

4. Button stroke: 2.0mm;

5. Button life: operate more than 2 million times per key;

6. Button strength: 1.2N +/- 0.1N (contact force);

7. Front panel: imported printed brushed SUS304 stainless steel, 2.0mm thick;

Electrical parameters:

Environmental adaptability:

1. Working temperature: -20 ° Cto + 60 ° C

2. Storage temperature: -30 ° Cto + 70 ° C

3. Relative humidity: 30-90%

Installation method:1)Frontal drawing

2):Back drawing

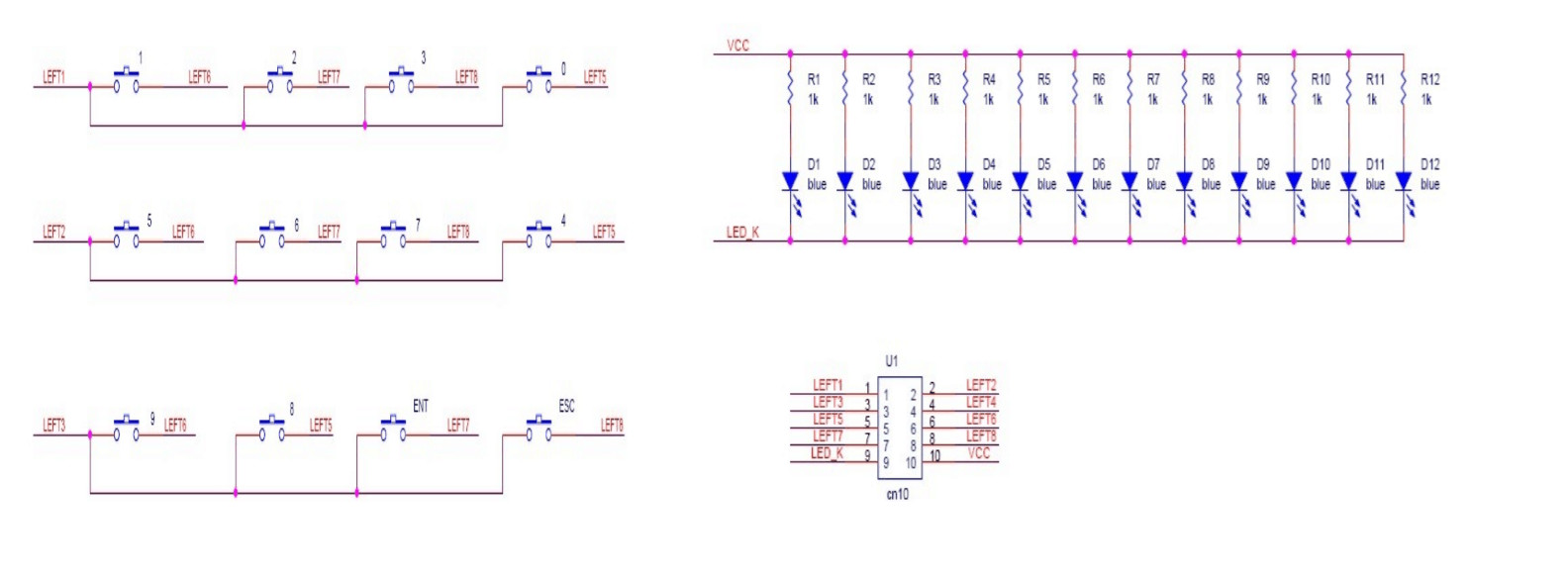

3):Matrix diagram

4)Product renderings
